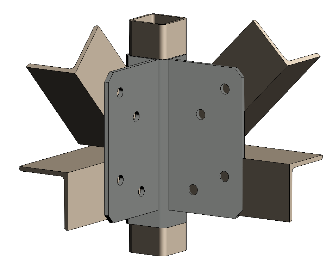

2 way Steel Angle Bracing-Diag Up-Horiz-Corner

Description

These steel angle bracing cleats are perfect for sub-floor bracing, steel framed bracing bays for high wind loads, small communication towers etc

Most Builders will set a laser level for the top of the cleat, then slide the cleat up or down the shs post with 1 hand then use say 3 metal teks series 500 on each of the 2 channel faces to temporarily fix the channel cleat to the shs column, then when all cleats are fixed they will weld with a 5mm CFW down the 2 vertical edges of the shs cleat channel against the shs post. This allows for maximum strength at the cleat connection

View a slide show of SHS-Steel Angle Bracing Cleats above.
